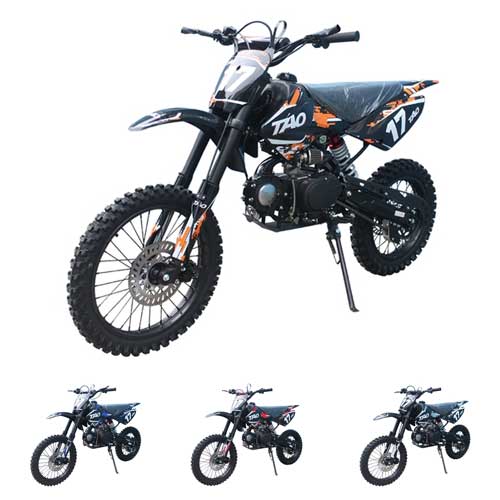

DB17

Description
  • Bigger... Faster... Fun for kids and adults!
  • 4-Speed Manual Transmission
  • Manual Clutch
  • Kick-Start
  • Front and Rear Disc Brakes
  • 17" Front Tire
  • 14" Rear Tire

Colors

Red
Orange
Blue
Green
White

Engine:

ENGINE TYPE 125CC,Air cooled, 4-stroke, 1-cylinder Start Type Kick Start
Transmission Chain Drive Engine Gear 4-speed (1-N-2-3-4)
Wheelbase(inch) 49.20 Inches (1250 mm) Ignition CDI
Fuel Capacity(L) 1.5 Gal (5.5 L)

Chassis:

Front Brake Hydraulic Disc --- Hand Braker Rear Brake Hydraulic Disc --- Foot Braker
Tire Front 70/100 - 17 Tire Rear 90/100 - 14
Rim Front 1.6 x 17 (steel) Rim Rear 1.8 x 14 (steel)
Max Speed 37 MPH (60 KM/H)

Dimension:

G.W.(lbs) 200 LBS (91KG) N.W.(lbs) 154 LBS (70KG)
Overall Size(inch) 70 x 30 x 43 Inches (1770 x 765 x 1090 mm) Carton Size(inch) 62 x 15 x 32 Inches (1580 x 385 x 810 mm)
Seat Height(inch) 34 Inches Ground Clearance(inch) 13.0 Inches (330 mm)
